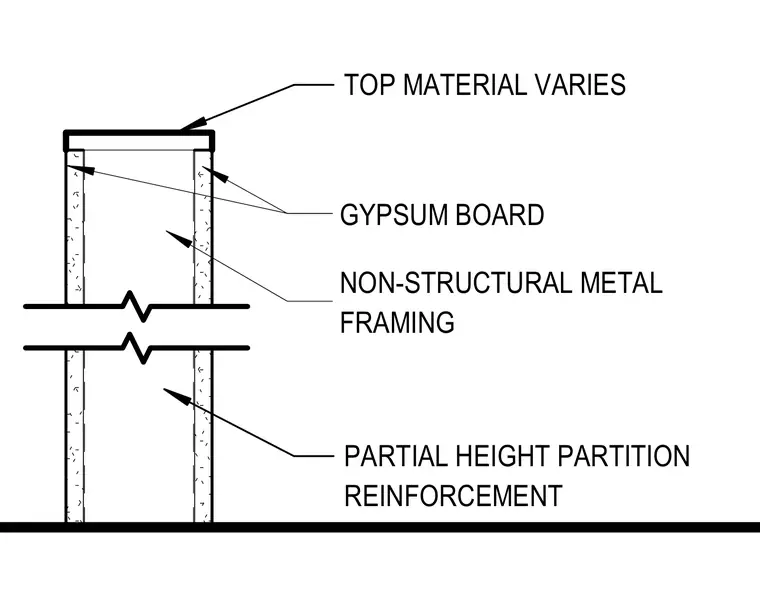

A non-structural metal framing stud wall is finished on both sides with gypsum board layers. The top of the partition features a variable top material finish cap. Internal reinforcement is provided within the partial height partition assembly for structural stability.
NON-STRUCTURAL METAL FRAMING GYPSUM BOARD GYPSUM BOARD PARTIAL HEIGHT PARTITION REINFORCEMENT TOP MATERIAL VARIES
