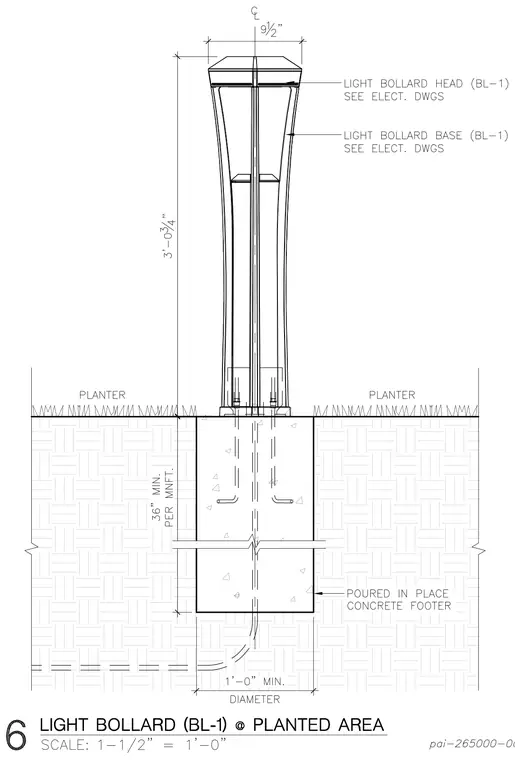

This elevation detail shows a light bollard anchored to a poured-in-place concrete footer within a planter area. The assembly includes a light bollard head and base designated as BL-1, with electrical connections extending through the footing. The concrete footer measures a minimum of thirty-six inches deep per manufacturer, with a one-foot minimum diameter. Anchor bolts secure the bollard base directly to the concrete foundation.
