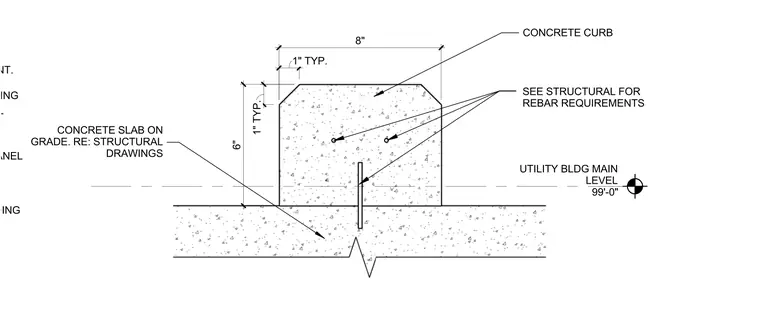

A-Q7YZM — Curb Detail

Architectural · A-Q7YZM

Curb Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Composite Concrete Reinforced Concrete Timber / Wood

Elements

Facades / Cladding Floors / Slabs Reinforcing Site / Paving Stem Walls Walls Waterproofing / Flashing

Text on the drawing

UTILITY BLDG MAIN LEVEL 99'-0" CONCRETE SLAB ON GRADE. RE: STRUCTURAL DRAWINGS CONCRETE CURB 8" 6" SEE STRUCTURAL FOR REBAR REQUIREMENTS 1" TYP. 1" TYP. SEE STRUCTURAL FOR REBAR REQUIREMENTS SEE STRUCTURAL FOR REBAR REQUIREMENTS CEMENT FIBER LAP SIDING 2X4 WOOD STUD FRAMING 5/16" CEMENT FIBER PANEL SELF-ADHERING SHEET BACKER ROD & SEALANT.
