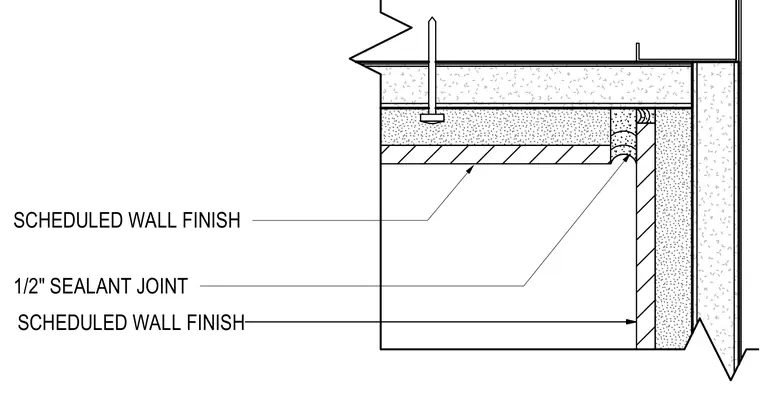

This plan detail shows a tile-to-tile wall finish transition incorporating a one-half-inch sealant joint between scheduled wall finishes. The assembly details the junction where two tiled surfaces meet at an interior corner or partition intersection.
