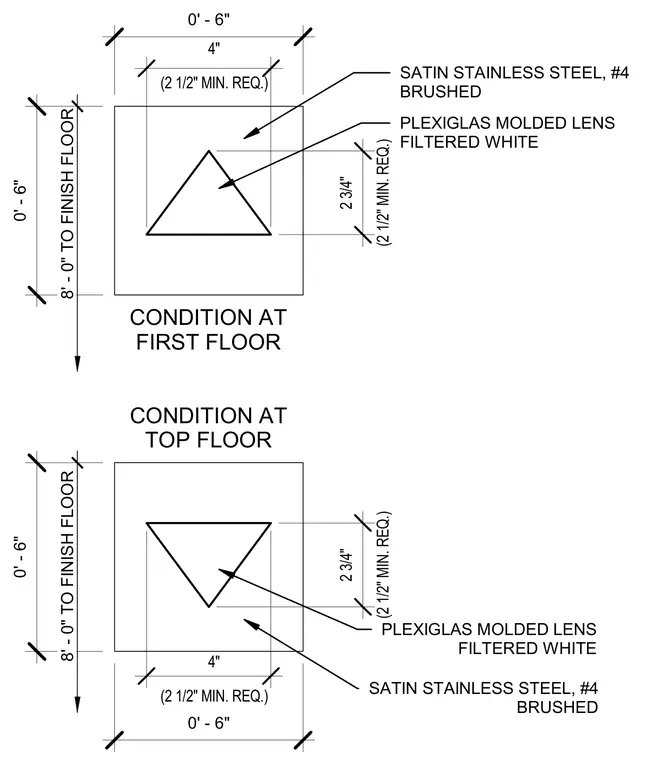

The assembly features a satin stainless steel housing with a number four brushed finish enclosing a molded Plexiglas filtered white lens. Dimensions indicate a six-inch square overall profile with a four-inch lens opening and specific clearance requirements of two and one-half inches minimum. The fixture is positioned eight feet zero inches to the finish floor at both the first and top floor conditions.
0' - 6" 0' - 6" SATIN STAINLESS STEEL, #4 BRUSHED PLEXIGLAS MOLDED LENS FILTERED WHITE 8' - 0" TO FINISH FLOOR CONDITION AT FIRST FLOOR (2 1/2" MIN. REQ.) 4" (2 1/2" MIN. REQ.) 2 3/4" 0' - 6" 0' - 6" SATIN STAINLESS STEEL, #4 BRUSHED PLEXIGLAS MOLDED LENS FILTERED WHITE CONDITION AT TOP FLOOR (2 1/2" MIN. REQ.) 4" (2 1/2" MIN. REQ.) 2 3/4" 8' - 0" TO FINISH FLOOR
