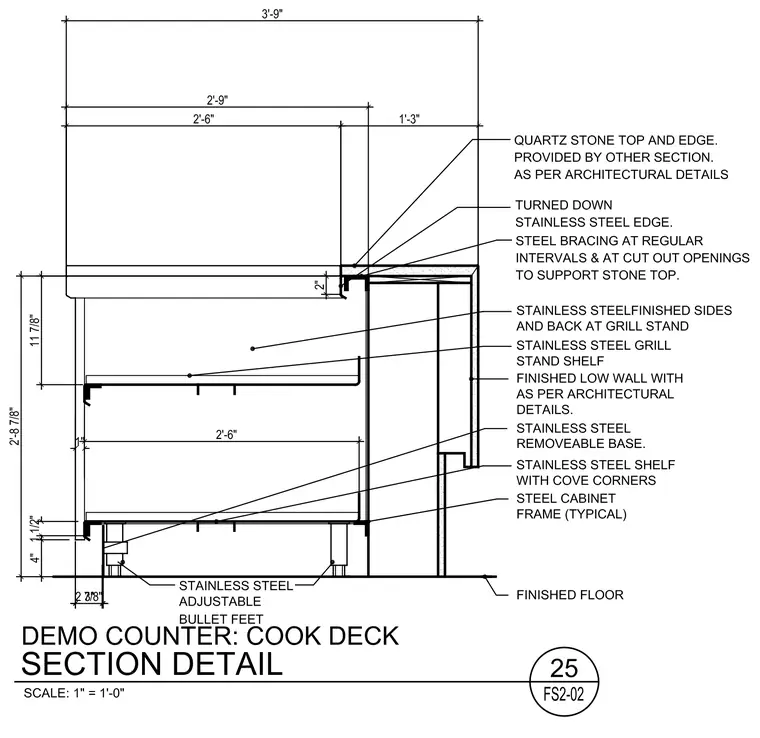

A stainless steel cook deck demonstration counter features a quartz stone top and edge supported by steel bracing at regular intervals and cut-out openings. The assembly incorporates a turned-down stainless steel edge, stainless steel finished sides and back, an internal grill stand shelf, and a lower removable stainless steel shelf with cove corners. The steel cabinet frame rests on stainless steel adjustable bullet feet above the finished floor, adjacent to a finished low wall.
