Architectural · A-Q7KVZ

Fluid-Applied Roof Flashing and Self-Adhering Joint Tape at Roof Curb

Materials

Elements

Roofs Decks Waterproofing / Flashing Reinforcing

About this detail

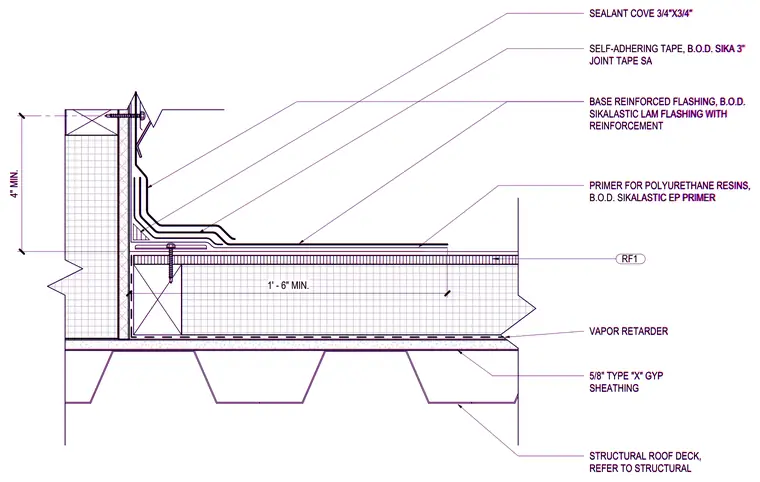

A fluid-applied flashing and waterproofing assembly at a roof intersection or curb. The substrate consists of a structural roof deck topped with five-eighths inch Type X gypsum sheathing and a vapor retarder. A primer for polyurethane resins is applied beneath a base reinforced flashing and Sikalastic liquid-applied membrane flashing with reinforcement. Self-adhering joint tape is applied at transitions, and a three-quarter inch by three-quarter inch sealant cove is provided at the internal corner.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
