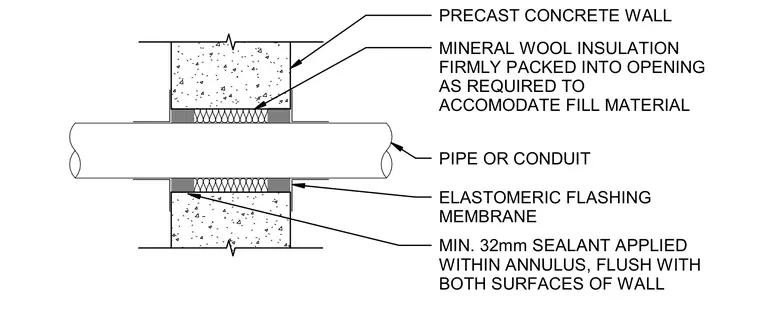

A pipe or conduit passes through an opening in a precast concrete wall with mineral wool insulation firmly packed into the opening to accommodate fill material. An elastomeric flashing membrane wraps the assembly, and a minimum 32-millimeter sealant is applied within the annulus flush with both surfaces of the wall.
PRECAST CONCRETE WALL PIPE OR CONDUIT MIN. 32mm SEALANT APPLIED WITHIN ANNULUS, FLUSH WITH BOTH SURFACES OF WALL MINERAL WOOL INSULATION FIRMLY PACKED INTO OPENING AS REQUIRED TO ACCOMODATE FILL MATERIAL ELASTOMERIC FLASHING MEMBRANE
