Architectural · A-Q76NW

Steel Pan Stair Cross Section at Landing

Materials

Elements

Columns Stairs Railings / Guards Floors / Slabs Decks

About this detail

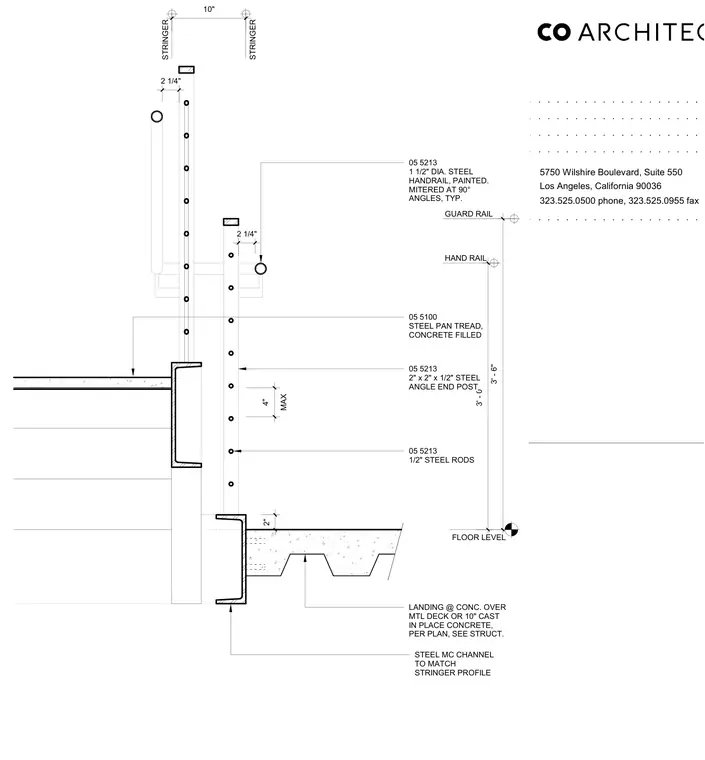

This cross section shows a steel pan stair landing detail featuring a concrete-filled steel pan tread supported by steel MC channels matching the stringer profile. The guardrail assembly includes two-inch by two-inch by one-half-inch steel angle end posts, a one-and-one-half-inch diameter painted steel handrail mitered at ninety-degree angles, and one-half-inch steel rods spaced at a maximum of four inches. The landing consists of concrete over metal deck or ten inches of cast-in-place concrete sized per structural plans.
