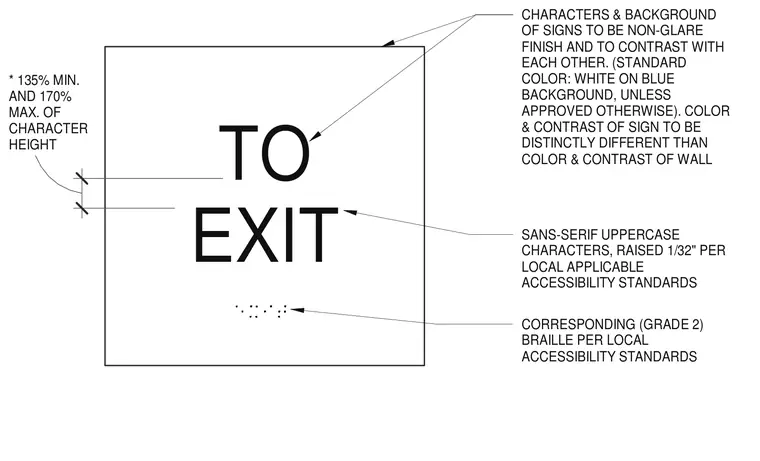

Tactile exit sign featuring sans-serif uppercase characters raised 1/32" per local applicable accessibility standards. Corresponding Grade 2 Braille is included below the text. Character height follows local accessibility requirements at a minimum of 135% and maximum of 170% of standard character height. Characters and background feature a non-glare finish with contrasting colors, standardizing white text on a blue background unless approved otherwise, maintaining distinct contrast with the supporting wall.
EXIT TO * 135% MIN. AND 170% MAX. OF CHARACTER HEIGHT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL
