Architectural · A-Q6NBT

Sculpture Drain Detail at Curb

Materials

Concrete Reinforced Concrete Steel Stainless Steel Masonry / CMU Stone Metal (misc.)

Elements

Doors Floors / Slabs Waterproofing / Flashing Drainage Entrances Millwork / Casework Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

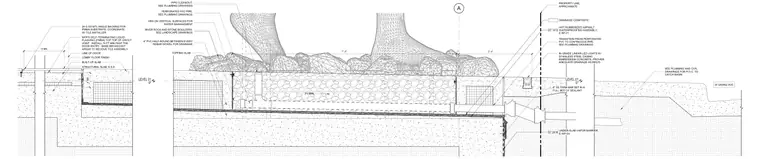

Drainage and waterproofing assembly for a sculpture pad at a curb interface. A structural concrete slab receives an under-slab vapor barrier and hot rubberized asphalt waterproofing with drainage composite on vertical surfaces. A topping slab holds river rock and stone boulders over a perforated PVC pipe network that transitions to a continuous pipe. A twenty-four gauge stainless steel metal angle provides backing for a polymethyl methacrylate liquid-applied flashing system, extending ten feet past the door entry over the lobby floor finish and built-up slab. An in-grade linear LED light with stainless steel casing is embedded in the concrete near the property line alongside a six-inch stainless steel termination bar set in sealant.
