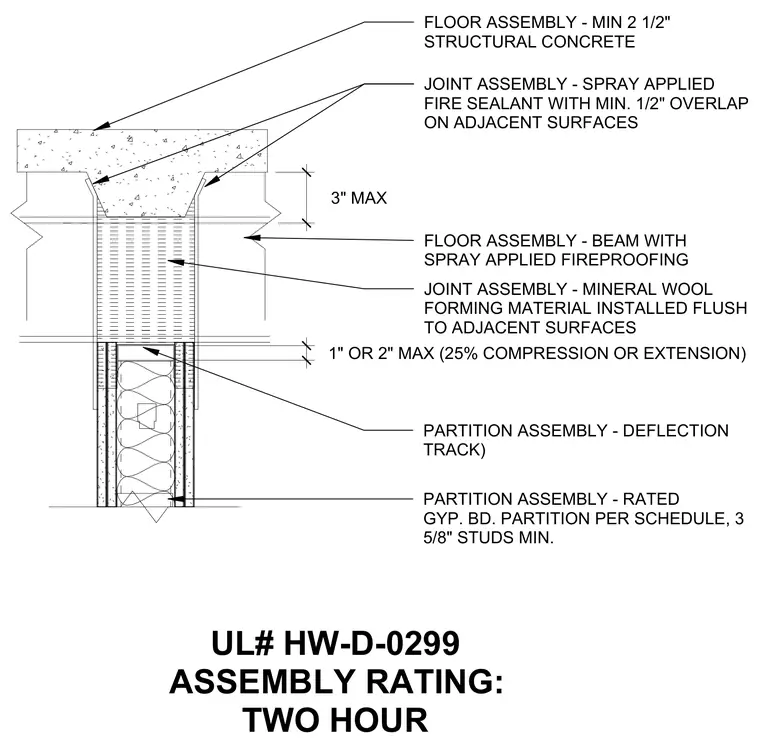

A two-hour rated head-of-wall joint assembly ties a rated gypsum board partition to a structural concrete floor slab and steel beam. The partition framing consists of minimum 3 5/8-inch steel studs fitted with a deflection track at the top. Mineral wool forming material is installed flush to adjacent surfaces within the joint gap. A spray-applied fire sealant with a minimum 1/2-inch overlap is applied to the joint interfaces on adjacent surfaces. The structural concrete floor slab is supported by a beam finished with spray-applied fireproofing.
UL# HW-D-0299 ASSEMBLY RATING: TWO HOUR JOINT ASSEMBLY - SPRAY APPLIED FIRE SEALANT WITH MIN. 1/2" OVERLAP ON ADJACENT SURFACES PARTITION ASSEMBLY - RATED GYP. BD. PARTITION PER SCHEDULE, 3 5/8" STUDS MIN. FLOOR ASSEMBLY - BEAM WITH SPRAY APPLIED FIREPROOFING PARTITION ASSEMBLY - DEFLECTION TRACK) JOINT ASSEMBLY - MINERAL WOOL FORMING MATERIAL INSTALLED FLUSH TO ADJACENT SURFACES 3" MAX 1" OR 2" MAX (25% COMPRESSION OR EXTENSION) FLOOR ASSEMBLY - MIN 2 1/2" STRUCTURAL CONCRETE
