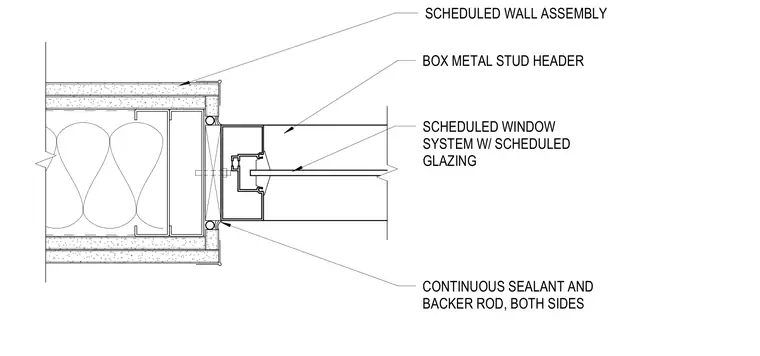

An interior storefront window system connects to a scheduled wall assembly featuring a box metal stud header and cold-formed steel framing. Continuous sealant and backer rod are applied to both sides of the window frame junction where it meets the wall. The aluminum storefront framing holds the scheduled glazing and fastens back to the metal stud partition.
CONTINUOUS SEALANT AND BACKER ROD, BOTH SIDES BOX METAL STUD HEADER SCHEDULED WALL ASSEMBLY SCHEDULED WINDOW SYSTEM W/ SCHEDULED GLAZING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
