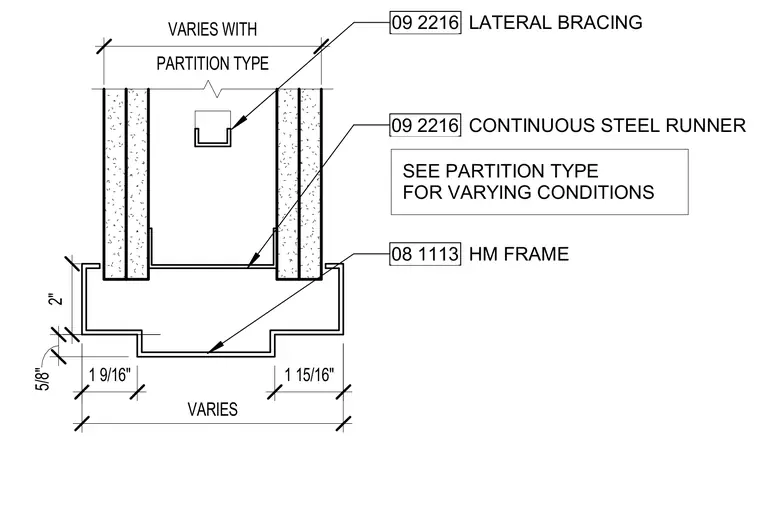

A hollow metal frame connects to a partition wall assembly with a continuous steel runner and lateral bracing. The hollow metal frame is flanked by gypsum board layers with dimensions varying according to the partition type. Specific framing dimensions and clearances are indicated on the drawing.
SEE PARTITION TYPE FOR VARYING CONDITIONS 1 15/16" 1 9/16" VARIES PARTITION TYPE VARIES WITH 2" 5/8" 09 2216 LATERAL BRACING 09 2216 CONTINUOUS STEEL RUNNER 08 1113 HM FRAME
