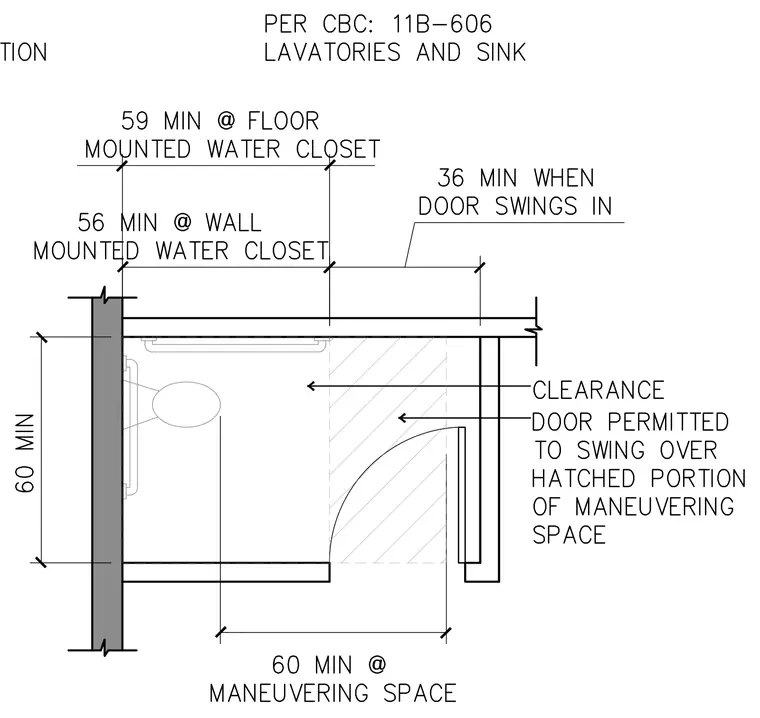

This accessibility plan detail establishes minimum spatial clearances for water closet installations and associated door maneuvering space. A sixty inch minimum dimension spans the side wall grab bar clearance area, while fifty-six inches is required for wall-mounted water closets and fifty-nine inches for floor-mounted water closets. The sixty inch minimum maneuvering space extends perpendicular from the fixture wall. A thirty-six inch clearance applies when the access door swings inward, with the door permitted to swing over the hatched portion of the maneuvering space.
