Architectural · A-Q63FM

Upper Cabinet Wall Section Detail

Elements

Walls Doors Ceilings Millwork / Casework

About this detail

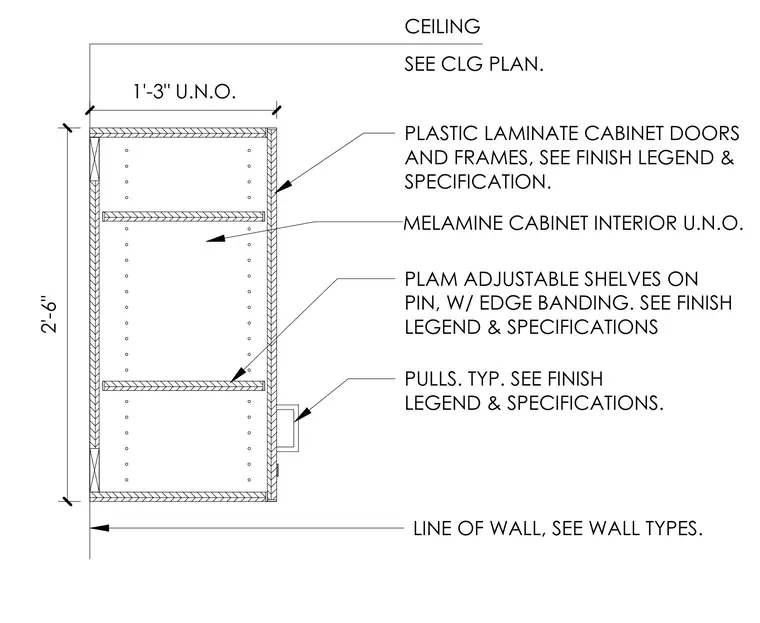

This upper wall-mounted cabinet measures one foot three inches deep by two feet six inches high, positioned relative to the ceiling plan and wall line. The assembly features plastic laminate doors and frames, a melamine interior, and plastic laminate adjustable shelves supported on pins with edge banding. Typical pulls are installed on the doors per the finish legend and specifications.
