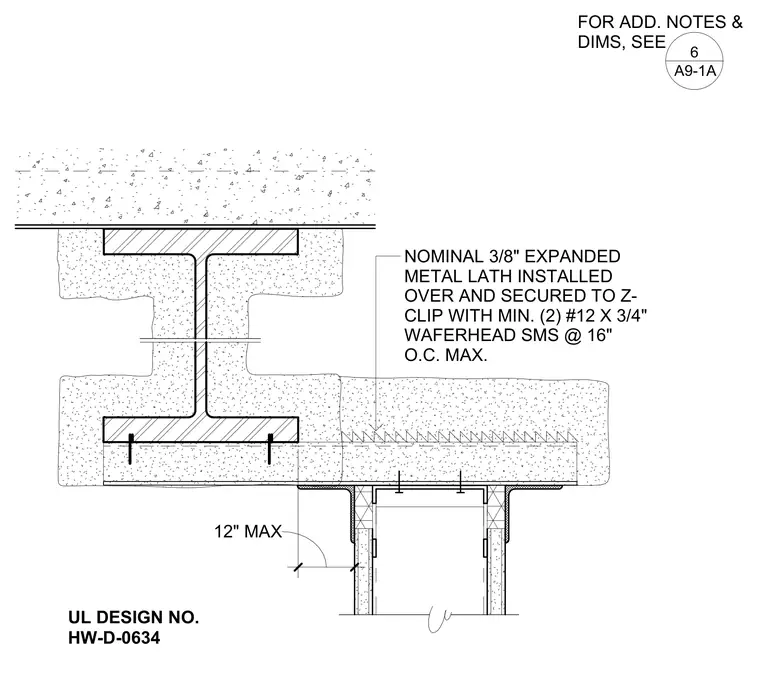

Nominal 3/8-inch expanded metal lath is installed over and secured to a Z-clip using a minimum of two number 12 by 3/4-inch waferhead sheet metal screws spaced at a maximum of 16 inches on center. The assembly complies with Underwriters Laboratories design number HW-D-0634.
UL DESIGN NO. HW-D-0634 NOMINAL 3/8" EXPANDED METAL LATH INSTALLED OVER AND SECURED TO Z- CLIP WITH MIN. (2) #12 X 3/4" WAFERHEAD SMS @ 16" O.C. MAX. FOR ADD. NOTES & DIMS, SEE 6 A9-1A 12" MAX
