Five-inch facing Lamboo rainscreen siding is secured over the wall substrate with CS-2 Climate-Shield rain screen clips and a CSSR8 Climate-Shield starter rail at the base. A Cor-A-Vent SV5 siding vent is incorporated above the starter rail to maintain cavity ventilation. A CT-501 single course and a CTB-501 tile base finish the lower wall transition above the horizontal tile flooring surface.

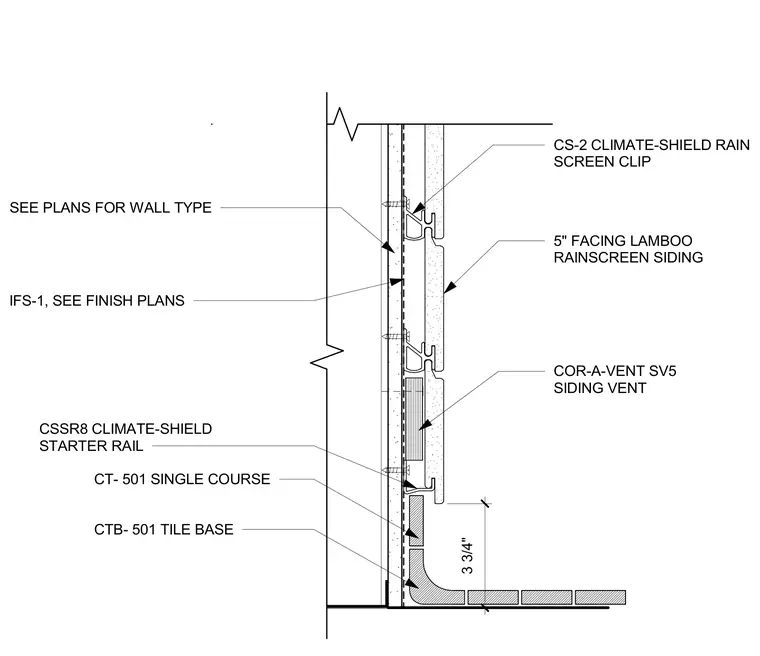

5" FACING LAMBOO RAINSCREEN SIDING IFS-1, SEE FINISH PLANS SEE PLANS FOR WALL TYPE COR-A-VENT SV5 SIDING VENT CSSR8 CLIMATE-SHIELD STARTER RAIL CS-2 CLIMATE-SHIELD RAIN SCREEN CLIP 3 3/4" CTB- 501 TILE BASE CT- 501 SINGLE COURSE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
