Shaft Wall Assembly

Materials

Cold-formed Steel Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Partitions Floors / Slabs Decks Roof / Floor Openings

About this detail

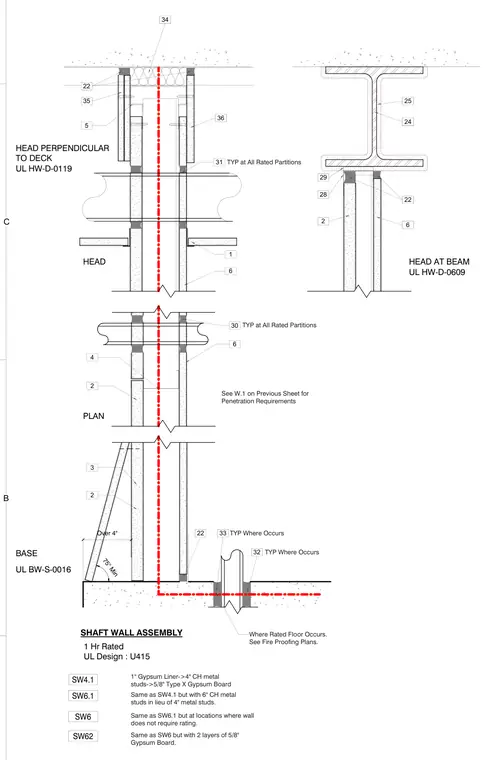

A one-hour rated shaft wall assembly under Underwriters Laboratories design U415 comprises conditions at the base, floor plan, head perpendicular to deck, and head at a steel beam. The core assembly consists of one-inch gypsum liner panels, four-inch CH metal studs, and five-eighths-inch Type X gypsum board. Fire-rated joint systems such as UL HW-D-0119, UL HW-D-0609, and UL BW-S-0016 are specified at the transitions to structural elements. Alternate configurations include variants with six-inch CH metal studs and double layers of gypsum board based on structural and acoustic requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
