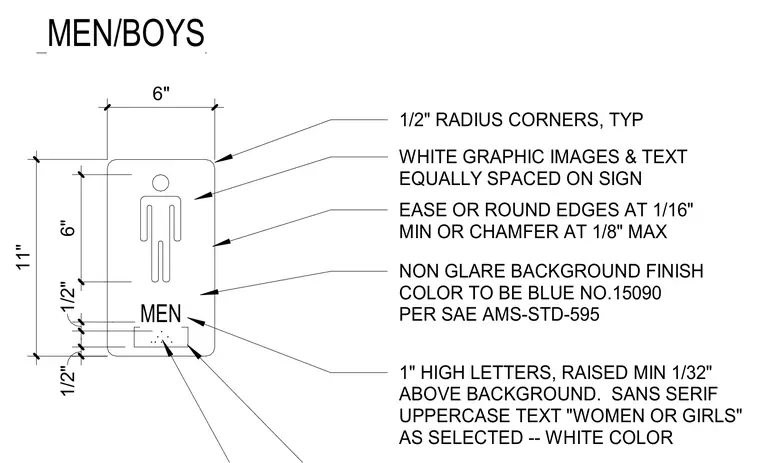

The sign measures six inches wide by eleven inches high with one-half-inch radius corners that are eased or rounded at a one-sixteenth-inch minimum or chamfered at a one-eighth-inch maximum. The background features a non-glare finish in blue color number 15090 per SAE AMS-STD-595 with white graphic images and text equally spaced. The sans-serif uppercase text is one inch high and raised a minimum of one-thirty-second of an inch above the background.
6" 11" WHITE GRAPHIC IMAGES & TEXT EQUALLY SPACED ON SIGN NON GLARE BACKGROUND FINISH COLOR TO BE BLUE NO.15090 PER SAE AMS-STD-595 1" HIGH LETTERS, RAISED MIN 1/32" ABOVE BACKGROUND. SANS SERIF UPPERCASE TEXT "WOMEN OR GIRLS" AS SELECTED -- WHITE COLOR MEN 6" MEN/BOYS 1/2" 1/2" 1/2" RADIUS CORNERS, TYP EASE OR ROUND EDGES AT 1/16" MIN OR CHAMFER AT 1/8" MAX
