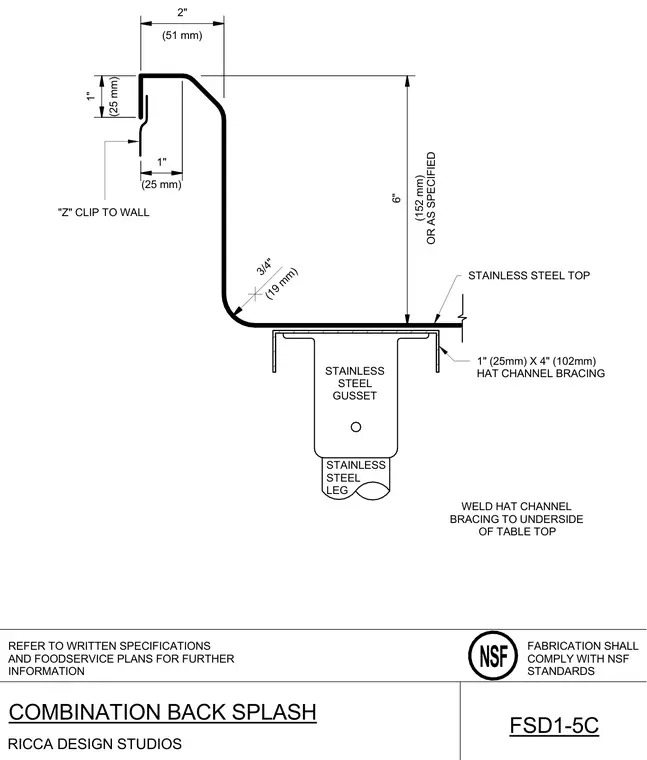

A stainless steel combination back splash is secured to the wall via a stainless steel Z clip providing a 1-inch offset and a 2-inch top width. The 6-inch high splash transitions with a 3/4-inch radius down to the stainless steel table top. Hat channel bracing measuring 1 inch by 4 inches is welded to the underside of the table top for structural rigidity. A stainless steel gusset and leg assembly supports the underside, complying with National Sanitation Foundation standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STAINLESS STEEL GUSSET "Z" CLIP TO WALL STAINLESS STEEL TOP STAINLESS STEEL LEG WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP 1" (25mm) X 4" (102mm) HAT CHANNEL BRACING (25 mm) 1" (25 mm) 1" (51 mm) 2" (152 mm) OR AS SPECIFIED 6" COMBINATION BACK SPLASH FSD1-5C (19 mm) 3/4"
