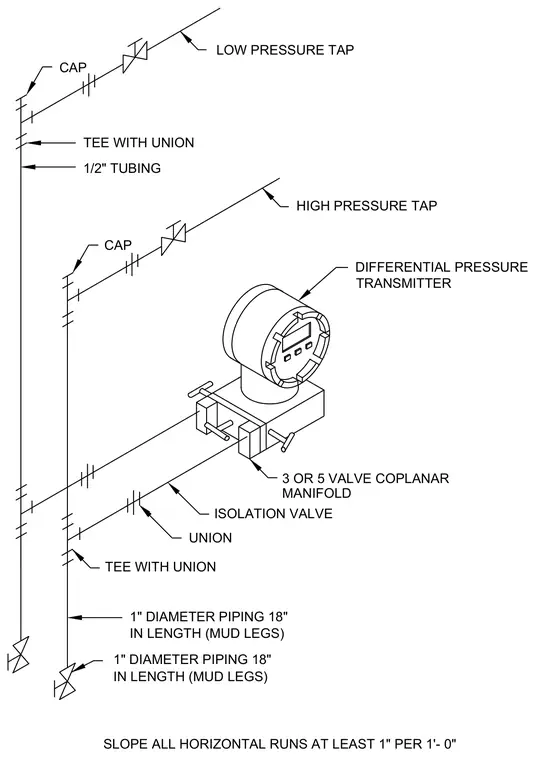

A differential pressure transmitter connects to high and ported pressure taps via one-half-inch tubing and a three- or five-valve coplanar manifold. Isolation valves and unions are integrated into the runs alongside capped tee fittings. One-inch diameter mud legs eighteen inches in length collect sediment at the lower ends of the vertical runs. All horizontal runs slope at least one inch per foot.
1" DIAMETER PIPING 18" IN LENGTH (MUD LEGS) 1" DIAMETER PIPING 18" IN LENGTH (MUD LEGS) 3 OR 5 VALVE COPLANAR MANIFOLD ISOLATION VALVE UNION TEE WITH UNION DIFFERENTIAL PRESSURE TRANSMITTER HIGH PRESSURE TAP LOW PRESSURE TAP 1/2" TUBING SLOPE ALL HORIZONTAL RUNS AT LEAST 1" PER 1'- 0" TEE WITH UNION CAP CAP
