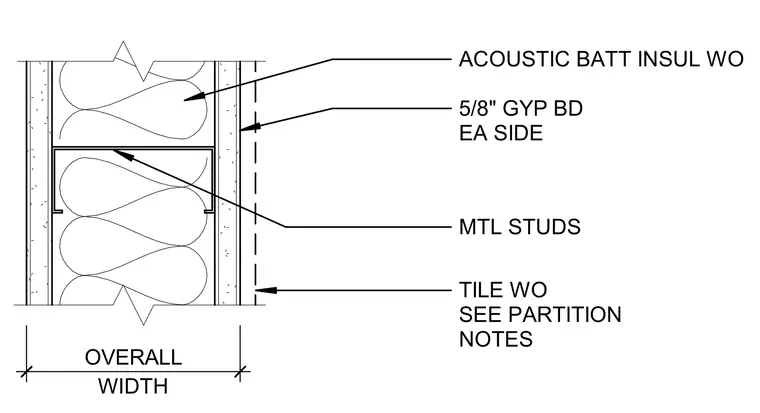

This interior partition assembly consists of metal studs faced on each side with five-eighths-inch gypsum board. Acoustic batt insulation fills the cavity between the studs for sound attenuation. Wall finishes are specified per partition notes.
5/8" GYP BD EA SIDE MTL STUDS ACOUSTIC BATT INSUL WO TILE WO SEE PARTITION NOTES WIDTH OVERALL
