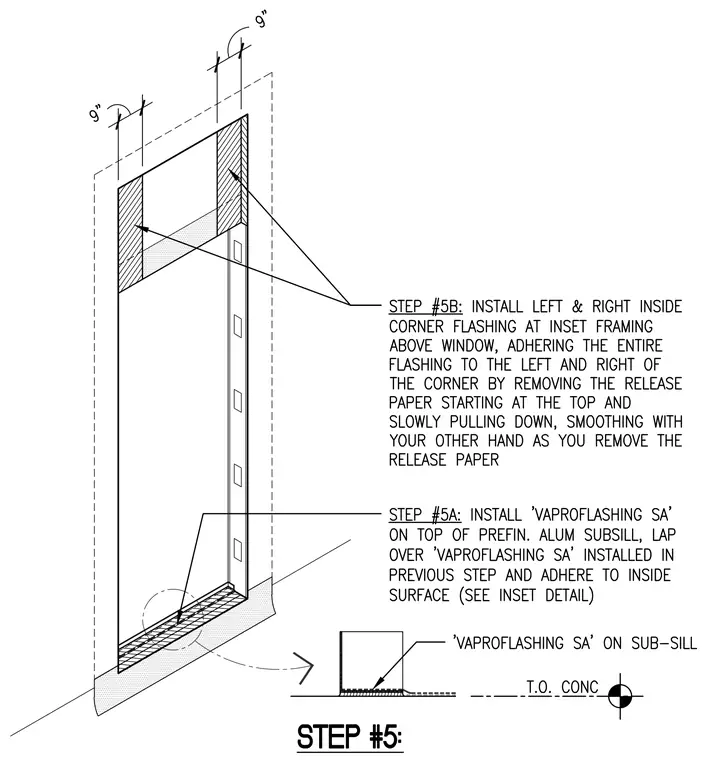

VaproFlashing SA is installed on top of the prefinished aluminum subsill and adhered to the inside surface, lapping over the flashing installed in the previous step. Left and right inside corner flashing is applied at the inset framing above the window with a width of nine inches. The entire flashing is adhered by removing the release paper starting at the top and smoothing downward.
