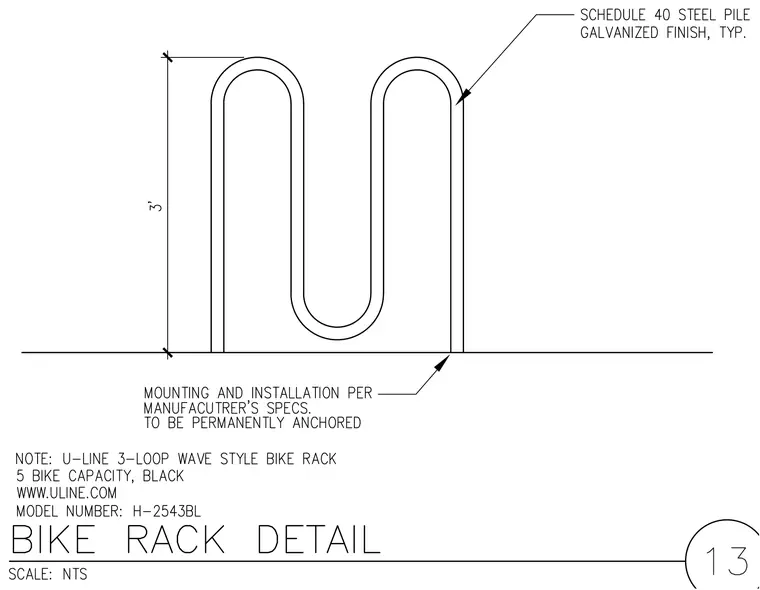

This assembly consists of a three-loop wave style bicycle rack fabricated from Schedule 40 steel pipe with a galvanized finish. The rack stands three feet tall and is permanently anchored per the manufacturer's specifications. The unit has a five-bike capacity and matches model number H-2543BL.
