Architectural · A-Q4PNM

Open Terrace Enclosure and Curtain Wall Detail

Materials

Concrete Steel Stainless Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

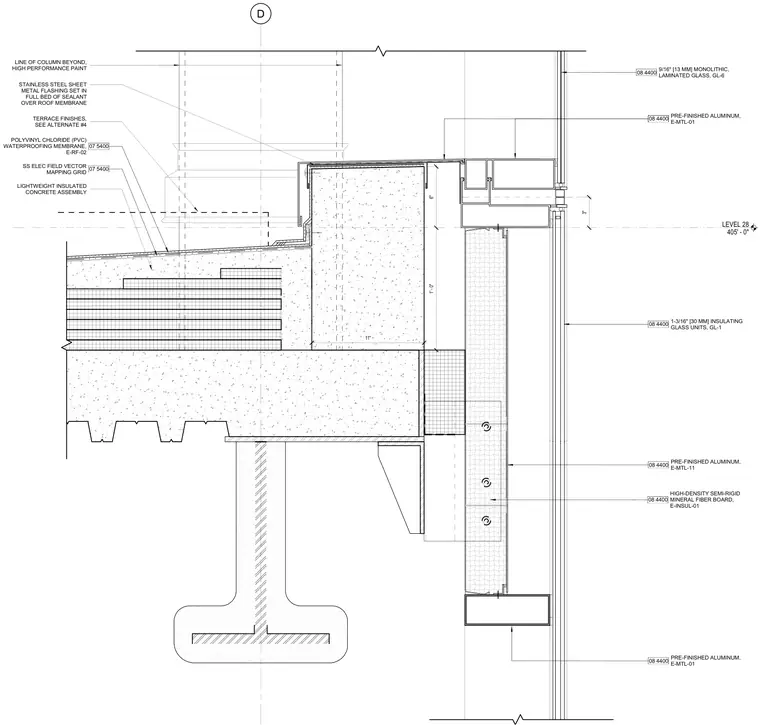

An open terrace enclosure at Level 28 intersects with a curtain wall glazing system. The assembly bears on a concrete-encased steel beam and a lightweight insulated concrete assembly topped with a polyvinyl chloride waterproofing membrane and a stainless steel electric field vector mapping grid. Terrace finishes sit above the membrane with an eleven-inch stainless steel sheet metal flashing set in a full bed of sealant. The exterior wall incorporates pre-finished aluminum framing, 9/16-inch monolithic laminated glass, 1-3/16-inch insulating glass units, and high-density semi-rigid mineral fiber board insulation. A line of column beyond is finished with high performance paint.
