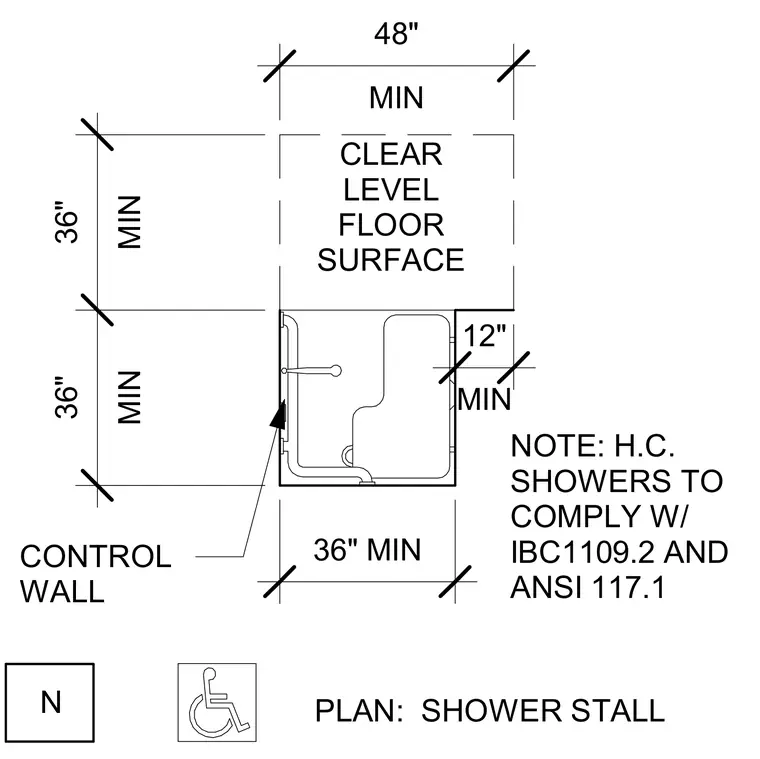

An accessible shower stall plan indicates the required clear level floor surface dimensions of 48 inches minimum width by 36 inches minimum depth alongside the entry. The shower stall itself measures 36 inches minimum by 36 inches minimum. A control wall is noted at the side with grab bars positioned according to accessibility guidelines. Code notes reference compliance with International Building Code section 1109.2 and ANSI A117.1 standards.
PLAN: SHOWER STALL N CLEAR LEVEL FLOOR SURFACE NOTE: H.C. SHOWERS TO COMPLY W/ IBC1109.2 AND ANSI 117.1 MIN 12" MIN 36" MIN 36" MIN 48" CONTROL WALL 36" MIN
