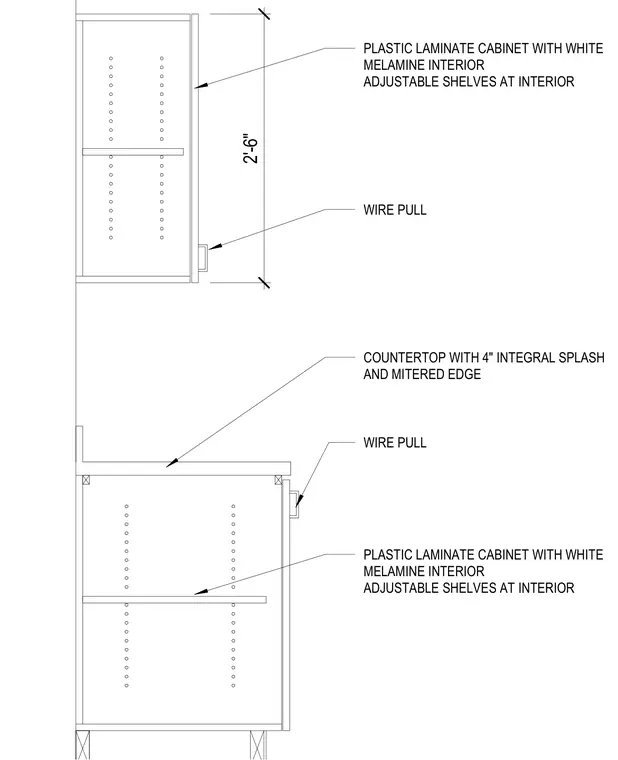

This casework section details upper and lower plastic laminate cabinets featuring white melamine interiors and adjustable shelves supported by pin holes. The base cabinet is capped with a countertop that includes a four-inch integral splash and a mitered edge. Both cabinet units are fitted with wire pulls. The upper cabinet is mounted two feet six inches above the countertop.
2'-6" WIRE PULL WIRE PULL PLASTIC LAMINATE CABINET WITH WHITE MELAMINE INTERIOR ADJUSTABLE SHELVES AT INTERIOR PLASTIC LAMINATE CABINET WITH WHITE MELAMINE INTERIOR ADJUSTABLE SHELVES AT INTERIOR COUNTERTOP WITH 4" INTEGRAL SPLASH AND MITERED EDGE
