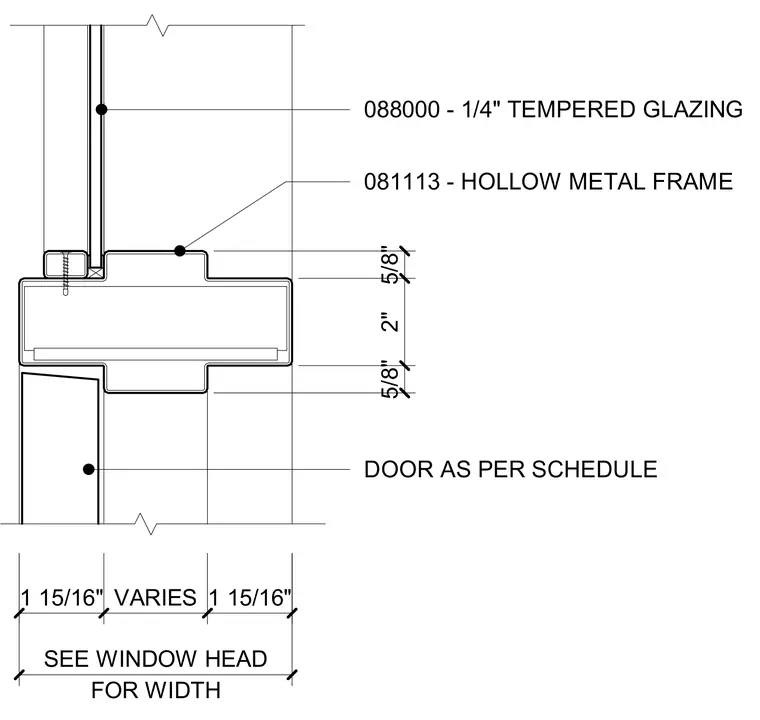

A hollow metal door and window head assembly incorporates a hollow metal frame supporting one-quarter-inch tempered glazing. A door specified per the schedule hangs below the frame header, while the glazing assembly sits above. The hollow metal frame features specific profile dimensions with five-eighth-inch offsets and a two-inch main profile width.
DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" 088000 - 1/4" TEMPERED GLAZING 081113 - HOLLOW METAL FRAME 5/8" 2" 5/8" FOR WIDTH SEE WINDOW HEAD
