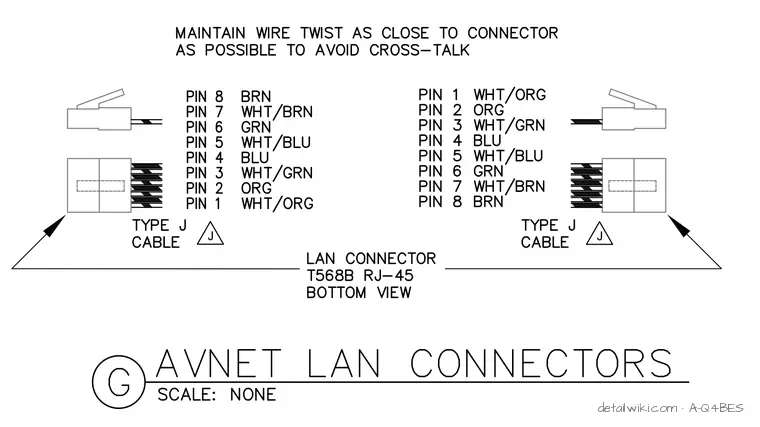

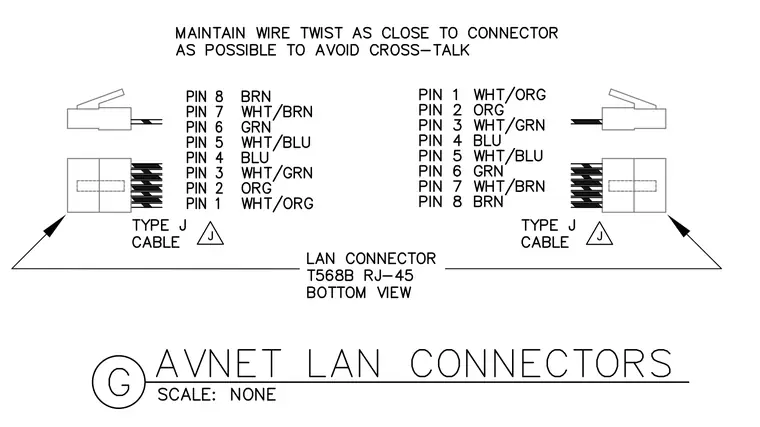

This drawing outlines the pinout and wiring configuration for an Avnet LAN connector utilizing the T568B RJ-45 standard in a bottom view. Pin configurations are detailed for both connector sides, assigning specific color codes including white/orange, orange, white/green, blue, white/blue, green, white/brown, and brown. Type J cables terminate at each connector interface with matching pin assignments. A note directs technicians to maintain the wire twist as close to the connector as possible in order to avoid cross-talk.
