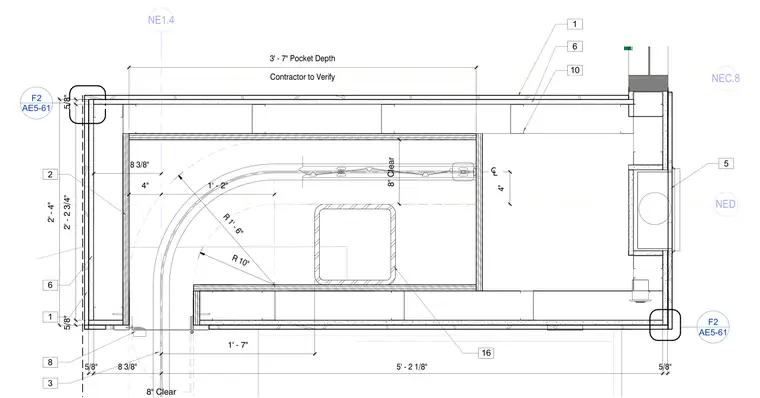

Plan detail of a folding security grill jamb with a three-foot seven-inch pocket depth verified by the contractor. The assembly features an eight-inch clear opening with track alignment radii of one foot six inches and ten inches. Dimensions include two feet four inches and five feet two and one-eighth inches along the perimeter wall. Callout tags reference sheet numbers and detail markers.
NED NE1.4 NEC.8 4" Contractor to Verify 3' - 7" Pocket Depth 8 3/8" 3 1' - 2" 4" 8" Clear R 1' - 6" R 10" 8 1 6 8" Clear 1' - 7" 16 2 1 6 10 5 AE5-61 F2 AE5-61 F2 2' - 4" 5/8" 2' - 2 3/4" 5/8" 5/8" 5' - 2 1/8" 8 3/8" 5/8"
