An approved exterior substrate supports a layer of Dryvit adhesive securing an EPS insulation board, which is faced with a base coat embedding reinforcing mesh and finished with a textured exterior coating. The head flashing integrates with the Dryvit Aquaflash system, extending beneath the assembly and interfacing with the storefront window frame. An air seal and compatible sealant with a closed-cell backer rod are installed at the window head joint per manufacturer requirements. Optional EPS shapes and detailed mesh wrapping provide continuous moisture protection and edge sealing around the opening.

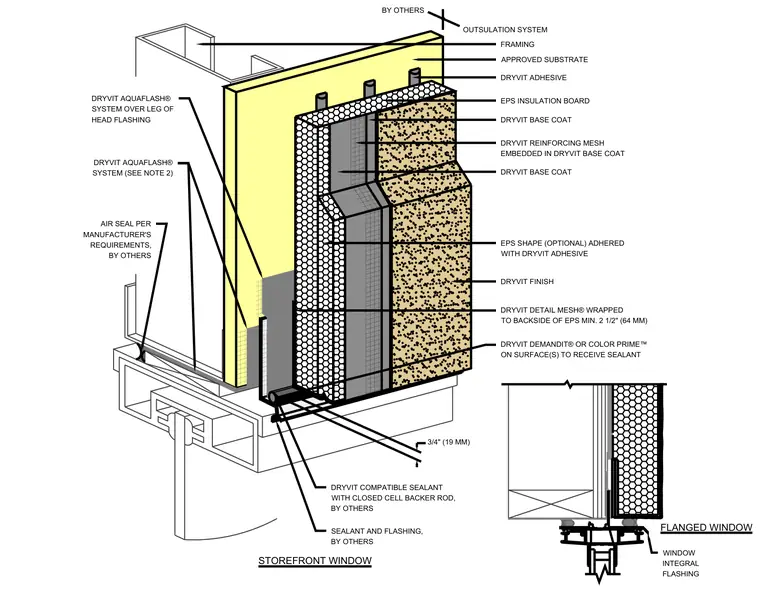

APPROVED SUBSTRATE DRYVIT COMPATIBLE SEALANT WITH CLOSED CELL BACKER ROD, BY OTHERS SEALANT AND FLASHING, BY OTHERS 3/4" (19 MM) DRYVIT ADHESIVE EPS INSULATION BOARD DRYVIT BASE COAT DRYVIT AQUAFLASH® SYSTEM (SEE NOTE 2) DRYVIT AQUAFLASH® SYSTEM OVER LEG OF HEAD FLASHING AIR SEAL PER MANUFACTURER'S REQUIREMENTS, BY OTHERS DRYVIT REINFORCING MESH EMBEDDED IN DRYVIT BASE COAT DRYVIT DETAIL MESH® WRAPPED TO BACKSIDE OF EPS MIN. 2 1/2" (64 MM) DRYVIT DEMANDIT® OR COLOR PRIME™ ON SURFACE(S) TO RECEIVE SEALANT DRYVIT FINISH EPS SHAPE (OPTIONAL) ADHERED WITH DRYVIT ADHESIVE FRAMING DRYVIT BASE COAT BY OTHERS OUTSULATION SYSTEM FLANGED WINDOW STOREFRONT WINDOW WINDOW INTEGRAL FLASHING
