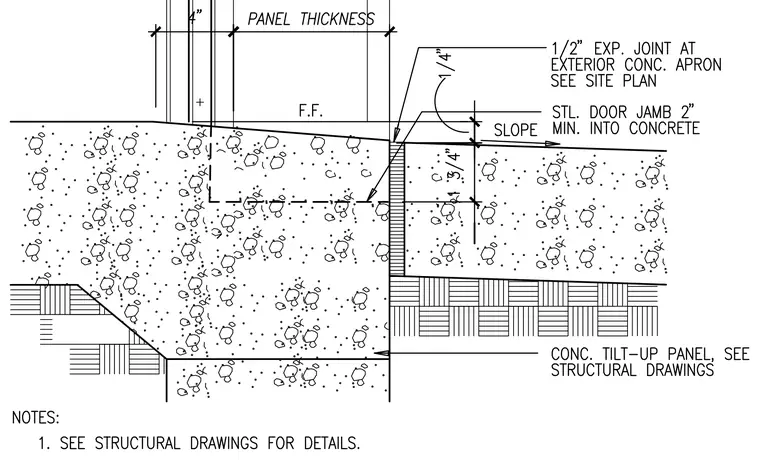

A concrete tilt-up wall panel bears down to a cast-in-place concrete foundation and slab edge. A one-half-inch expansion joint is provided at the exterior concrete apron per the site plan, featuring a three-quarter-inch vertical offset and a two-inch steel door jamb. The concrete apron slopes minimum into the concrete away from the threshold. Finished floor level is indicated at the interior. Structural details for the concrete tilt-up panel are referenced to structural drawings.
