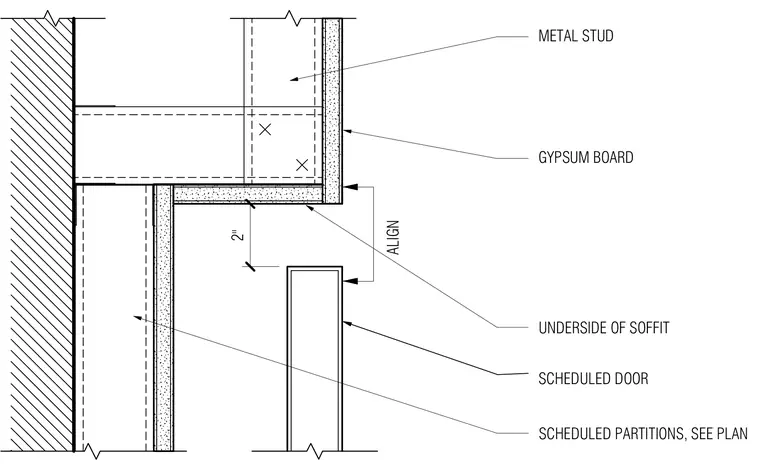

A metal stud partition framed with gypsum board terminates at a horizontal soffit above a scheduled door. The face of the soffit aligns with the scheduled door frame below, maintaining a specified 2-inch clearance. Wall construction and partition types are sized per plan.
2" ALIGN SCHEDULED DOOR GYPSUM BOARD METAL STUD SCHEDULED PARTITIONS, SEE PLAN UNDERSIDE OF SOFFIT
