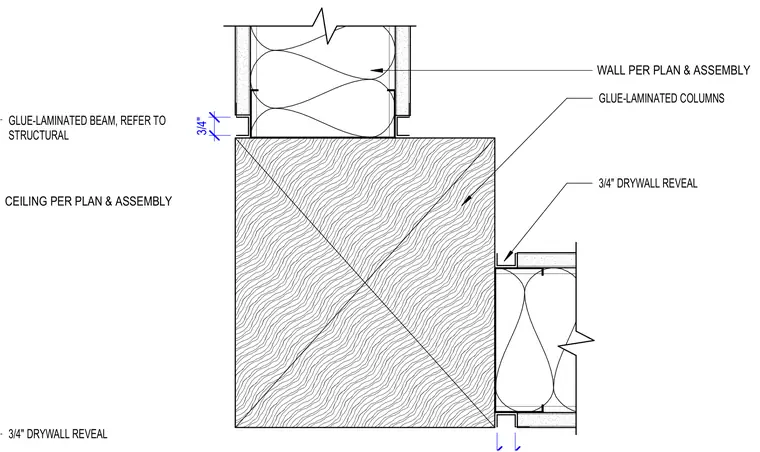

An interior wall partition meets a glue-laminated timber column with a three-quarter-inch drywall reveal detail on both sides of the junction. Metal trim creates the shadow reveal between the gypsum board assembly and the timber column face. The ceiling and framing assemblies match the architectural floor plan and structural specifications.
GLUE-LAMINATED BEAM, REFER TO STRUCTURAL 3/4" DRYWALL REVEAL CEILING PER PLAN & ASSEMBLY GLUE-LAMINATED COLUMNS 3/4" DRYWALL REVEAL 3/4" WALL PER PLAN & ASSEMBLY
