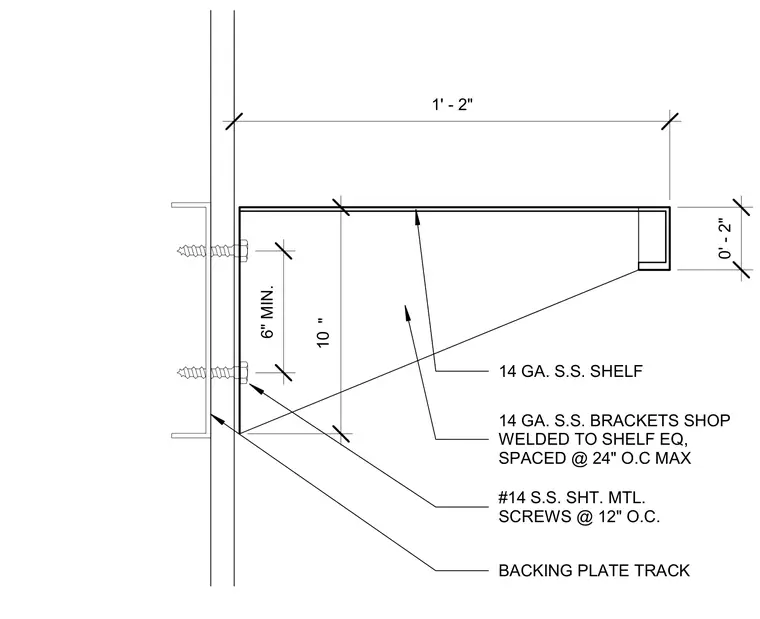

A fourteen-gauge stainless steel shelf is supported by fourteen-gauge stainless steel brackets shop welded at equal spacing with a maximum of twenty-four inches on center. The shelf assembly attaches to a backing plate track using number fourteen stainless steel sheet metal screws spaced at twelve inches on center. The vertical back leg of the shelf measures a minimum of six inches, with an overall shelf depth of one foot two inches and a height of ten inches.
14 GA. S.S. BRACKETS SHOP WELDED TO SHELF EQ, SPACED @ 24" O.C MAX #14 S.S. SHT. MTL. SCREWS @ 12" O.C. 6" MIN. " 10 1' - 2" 0' - 2" BACKING PLATE TRACK 14 GA. S.S. SHELF
