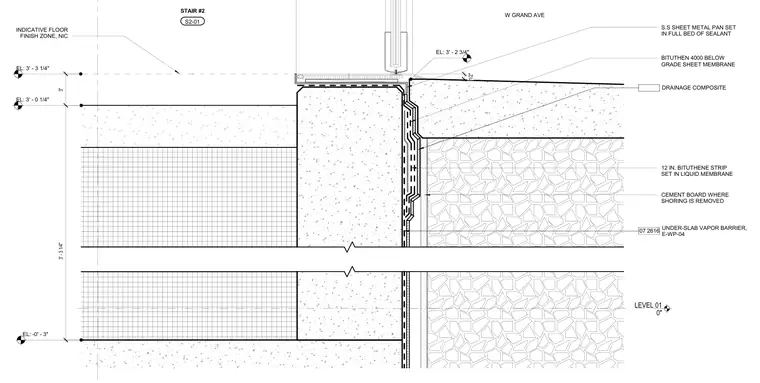

A stair egress door sill threshold transitions to an exterior sidewalk along W Grand Ave. A stainless steel sheet metal pan is set in a full bed of sealant at the door threshold above a concrete foundation wall. Below grade, a Bituthene 4000 below grade sheet membrane waterproofing system is applied with a drainage composite and a 12 inch Bituthene strip set in liquid membrane. An under-slab vapor barrier is installed beneath the concrete floor slab, and cement board is provided where shoring is removed.
LEVEL 01 0" STAIR #2 S2-01 INDICATIVE FLOOR FINISH ZONE, NIC 1/2" EL: 3' - 3 1/4" W GRAND AVE EL: 3' - 2 3/4" EL: 3' - 0 1/4" EL: -0' - 3" 3" 3' - 3 1/4" BITUTHEN 4000 BELOW GRADE SHEET MEMBRANE DRAINAGE COMPOSITE 12 IN. BITUTHENE STRIP SET IN LIQUID MEMBRANE CEMENT BOARD WHERE SHORING IS REMOVED 07 2616 UNDER-SLAB VAPOR BARRIER, E-WP-04 S.S SHEET METAL PAN SET IN FULL BED OF SEALANT
