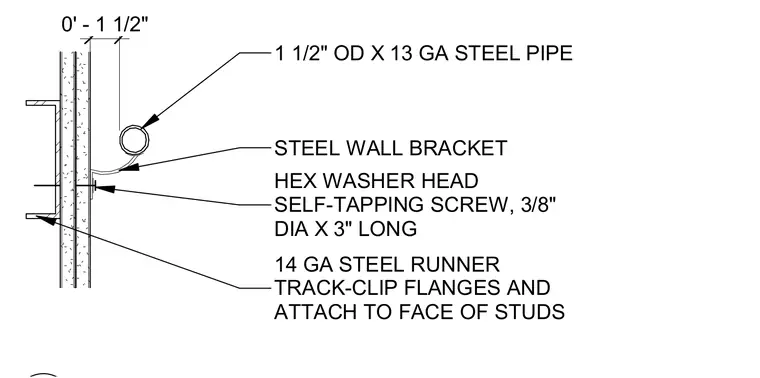

A one and one-half inch outer diameter by thirteen gauge steel pipe handrail is supported by a steel wall bracket. The bracket is secured to the face of the studs through the gypsum board using three-eighths inch diameter by three inches long hex washer head self-tapping screws. A fourteen gauge steel runner track clip flanges and attaches directly to the face of the studs to provide backing support.
1 1/2" OD X 13 GA STEEL PIPE STEEL WALL BRACKET HEX WASHER HEAD SELF-TAPPING SCREW, 3/8" DIA X 3" LONG 14 GA STEEL RUNNER TRACK-CLIP FLANGES AND ATTACH TO FACE OF STUDS 0' - 1 1/2"
