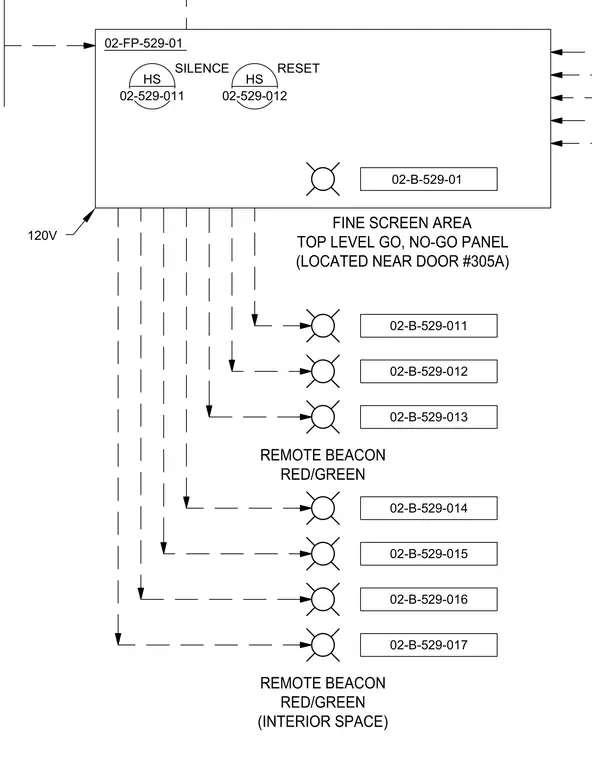

A fine screen area top level go no-go panel located near door 305A connects to 120V power and features silence and reset switches labeled HS 02-529-011 and HS 02-529-012. Seven remote beacon circuits designated 02-B-529-011 through 02-B-529-017 connect to red and green remote beacons.
HS 02-529-011 SILENCE HS 02-529-012 RESET )3 120V 02-B-529-011 02-B-529-012 02-B-529-013 % 02-B-529-014 02-B-529-015 02-B-529-016 02-B-529-017
