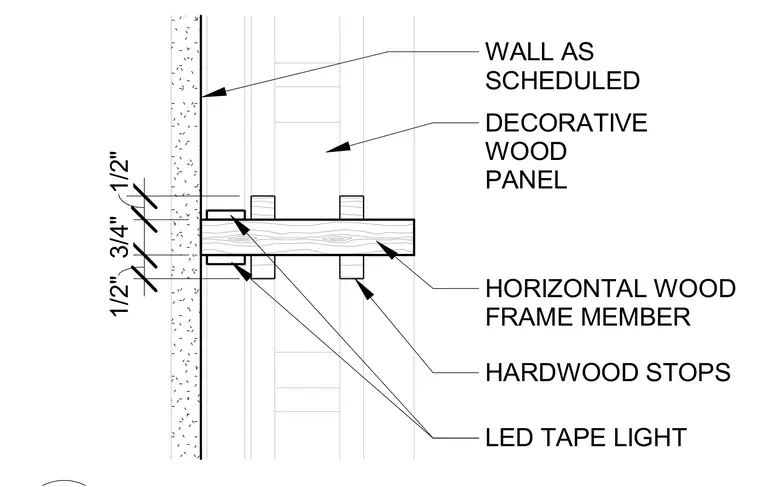

A horizontal wood frame member extends outward from a wall as scheduled to support decorative wood panels. Hardwood stops secure the assembly while maintaining precise dimensional clearances. LED tape lights are recessed within the wood frame to illuminate the screen wall. The connection details framing spacings with half-inch and three-quarter-inch dimensions.
WALL AS SCHEDULED DECORATIVE WOOD PANEL HORIZONTAL WOOD FRAME MEMBER HARDWOOD STOPS LED TAPE LIGHT 1/2" 3/4" 1/2"
