Architectural · A-Q3NB6

Fire Extinguisher Cabinet

Materials

Elements

Partitions Insulation Millwork / Casework Roof / Floor Openings

About this detail

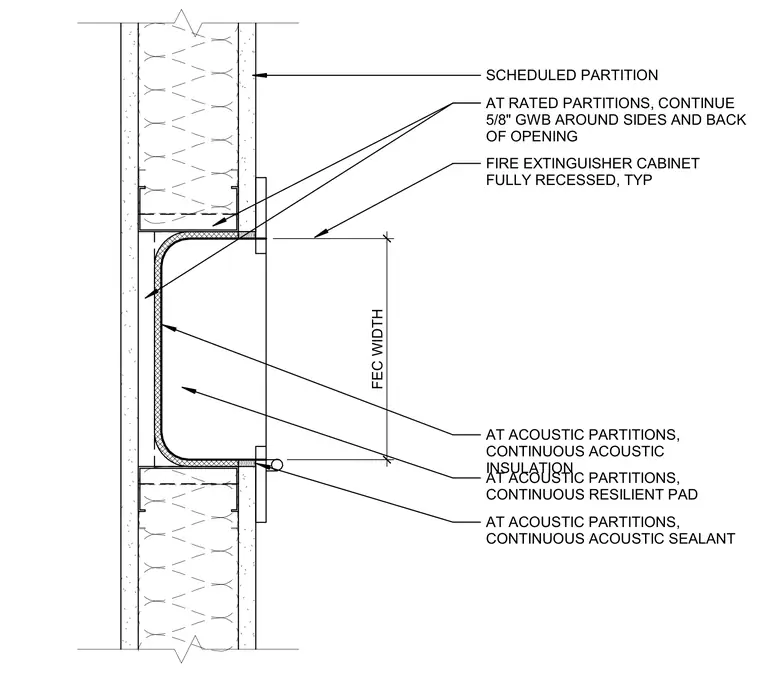

A fully recessed fire extinguisher cabinet is set into a scheduled partition framed with steel studs and faced with gypsum wallboard. At rated partitions, five-eighths-inch gypsum wallboard wraps continuously around the sides and back of the rough opening. At acoustic partitions, continuous acoustic insulation fills the cavity alongside a continuous resilient pad and continuous acoustic sealant at the perimeter trim to maintain sound isolation.
