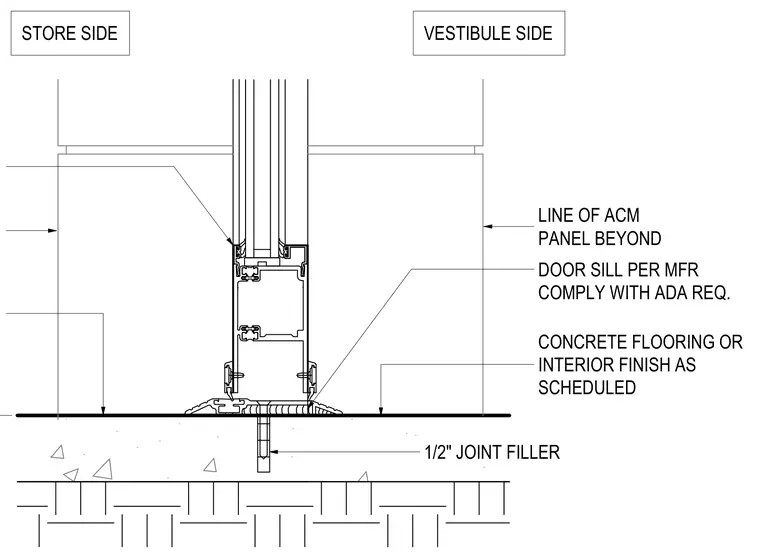

An aluminum storefront door sill sits on a concrete floor slab with a one-half-inch joint filler installed below the threshold. The door assembly is designed per manufacturer specifications to comply with ADA requirements. Concrete flooring or an interior finish is provided as scheduled on both the vestibule and store sides. The line of an aluminum composite material panel is visible beyond.
CONCRETE FLOORING OR INTERIOR FINISH AS SCHEDULED FINISH FLOOR (SEE 1/2" JOINT FILLER VESTIBULE SIDE STORE SIDE DOOR SILL PER MFR COMPLY WITH ADA REQ. LINE OF ACM PANEL BEYOND
