Ramp landings require a minimum length of 60 inches and must be at least as wide as the connecting ramp run. Straight configurations and directional changes require minimum sixty inch landings. Running slopes range between 1:20 and 1:12, with cross slopes and landing slopes not steeper than 1:48. Maximum rise for any single ramp run is limited to 30 inches, and runs with a rise greater than 6 inches require compliant handrails along with edge protection.

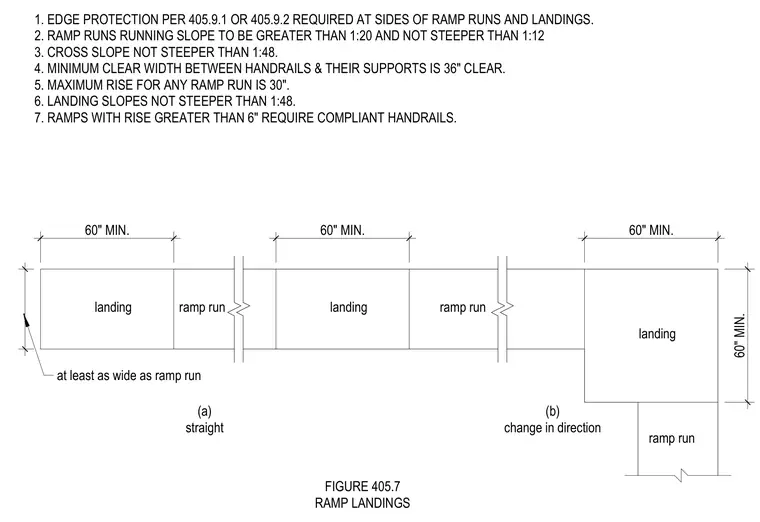

landing at least as wide as ramp run ramp run landing ramp run landing (a) straight FIGURE 405.7 RAMP LANDINGS ramp run (b) change in direction 60" MIN. 60" MIN. 60" MIN. 60" MIN. . 1. EDGE PROTECTION PER 405.9.1 OR 405.9.2 REQUIRED AT SIDES OF RAMP RUNS AND LANDINGS. 2. RAMP RUNS RUNNING SLOPE TO BE GREATER THAN 1:20 AND NOT STEEPER THAN 1:12 3. CROSS SLOPE NOT STEEPER THAN 1:48. 4. MINIMUM CLEAR WIDTH BETWEEN HANDRAILS & THEIR SUPPORTS IS 36" CLEAR. 5. MAXIMUM RISE FOR ANY RAMP RUN IS 30". 6. LANDING SLOPES NOT STEEPER THAN 1:48. 7. RAMPS WITH RISE GREATER THAN 6" REQUIRE COMPLIANT HANDRAILS.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
