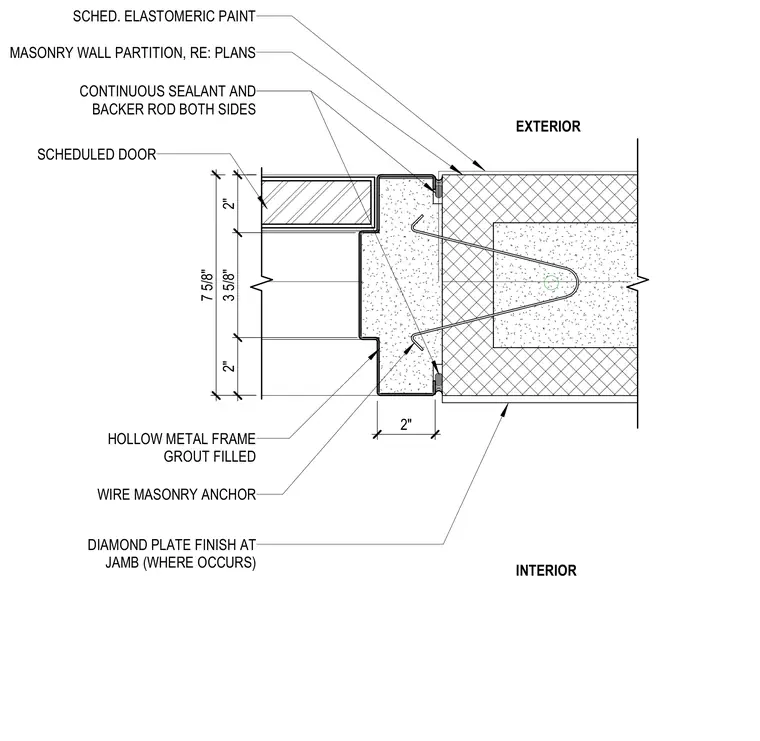

A hollow metal frame is embedded in a masonry wall partition and fully grouted solid. Wire masonry anchors tie the frame into the surrounding masonry wall on both sides. Continuous sealant and backer rod seal the joint at the exterior and interior frames. A scheduled door swings within the frame, and a diamond plate finish is provided at the jamb where indicated.
WIRE MASONRY ANCHOR CONTINUOUS SEALANT AND BACKER ROD BOTH SIDES HOLLOW METAL FRAME GROUT FILLED 7 5/8" 2" 2" 3 5/8" 2" MASONRY WALL PARTITION, RE: PLANS SCHEDULED DOOR DIAMOND PLATE FINISH AT JAMB (WHERE OCCURS) EXTERIOR INTERIOR SCHED. ELASTOMERIC PAINT
