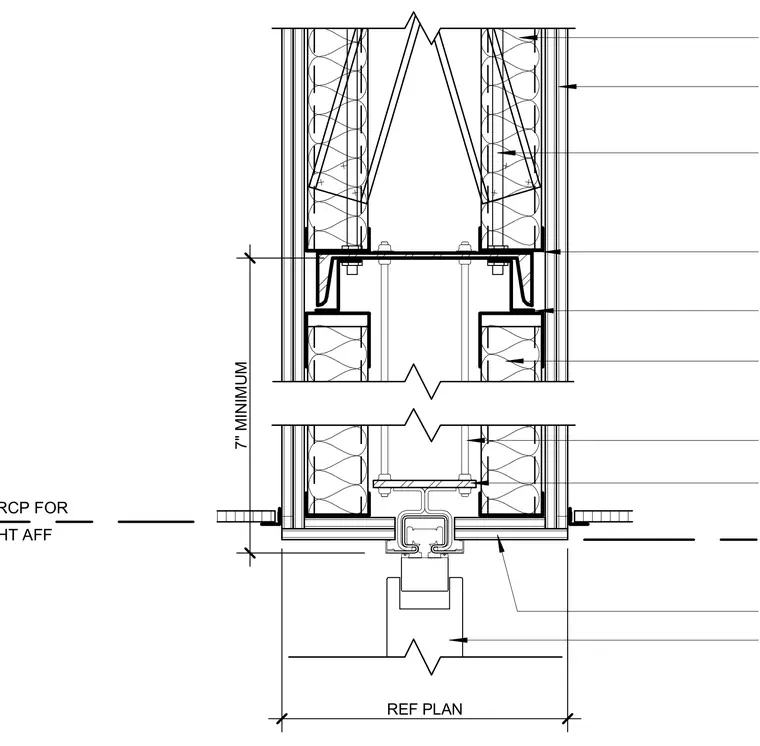

An operable partition track is suspended from structural framing with a seven-inch minimum clearance above the finished ceiling. Gypsum wallboard partitions finish up to the track assembly with perimeter reveals and acoustic seals. The track supports the operable wall panel below, aligning with the reflected ceiling plan height.
