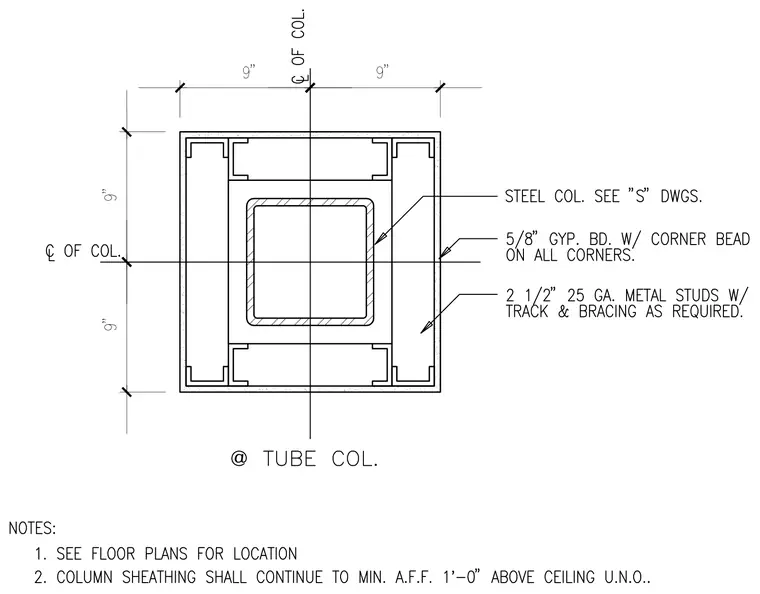

A square structural steel column is surrounded by a framed enclosure made of two-and-a-half-inch 25-gauge metal studs with track and bracing as required. The exterior is finished with five-eighths-inch gypsum board featuring corner beads on all corners. The assembly is centered on column grid lines with overall dimensions shown.
