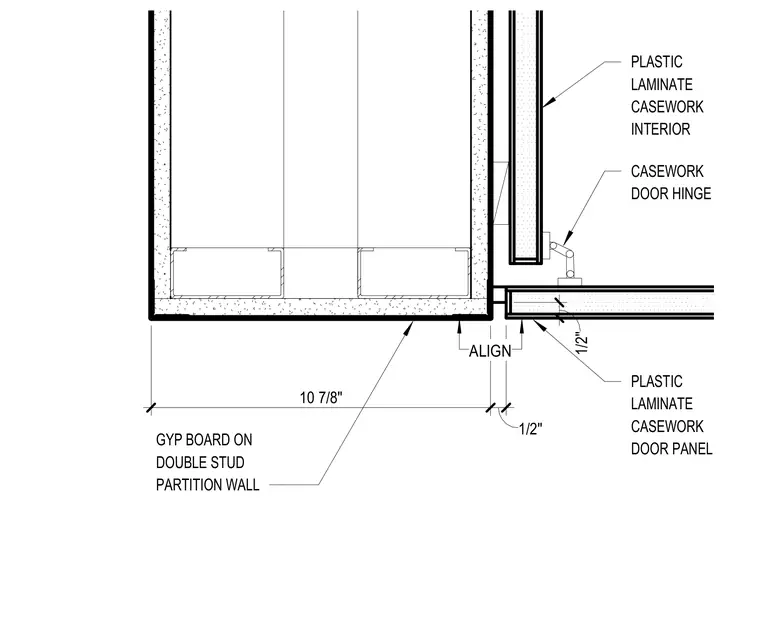

This plan detail shows the connection and alignment between a plastic laminate casework door panel and a double-stud gypsum board partition wall. The assembly features a casework door hinge mounting the plastic laminate door panel adjacent to the casework interior. A dimension of ten and seven-eighths inches is indicated for the double-stud partition wall thickness, with a half-inch alignment tolerance shown at the casework face.
1 0 7 / 8 " 1 / 2 " 1 / 2 " ALIGN C A S E W O R K D O O R H I N G E P L A S T I C L A M I N A T E C A S E W O R K I N T E R I O R P L A S T I C L A M I N A T E C A S E W O R K D O O R P A N E L G Y P B O A R D O N D O U B L E S T U D P A R T I T I O N W A L L
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
