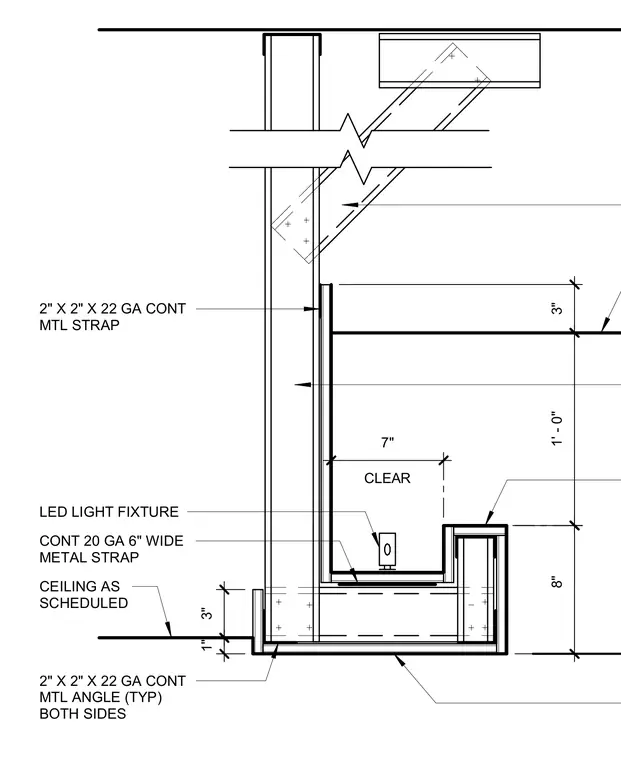

A continuous twenty-two gauge metal angle measuring two inches by two inches is installed on both sides typical for the ceiling assembly as scheduled. Continuous twenty-two gauge metal straps support the cove framing alongside a continuous twenty gauge six-inch wide metal strap. An LED light fixture is positioned within the recess to provide indirect illumination. Vertical and horizontal dimensions establish the clear spacing and drop heights for the cove construction.
CLEAR 7" 3" 1" 8" 1' - 0" 3" 2" X 2" X 22 GA CONT MTL ANGLE (TYP) BOTH SIDES CEILING AS SCHEDULED 2" X 2" X 22 GA CONT MTL STRAP CONT 20 GA 6" WIDE METAL STRAP LED LIGHT FIXTURE
