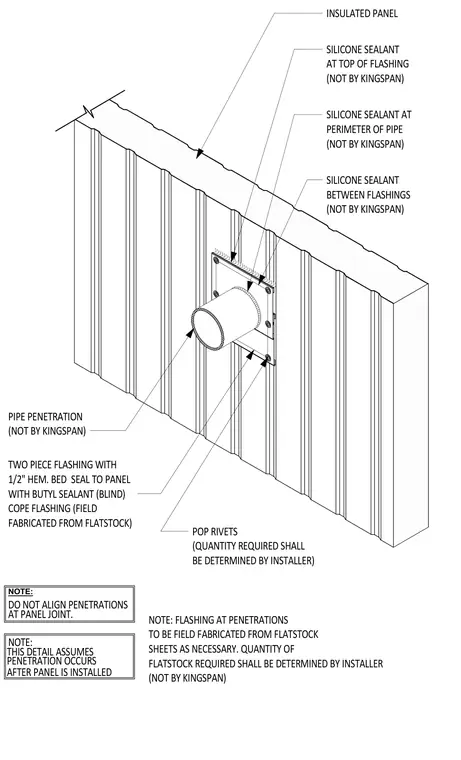

An insulated metal panel accommodates a pipe penetration sealed with a field-fabricated two-piece coping flashing bedded against the panel with blind butyl sealant. Pop rivets secure the flashing assembly with quantities determined by the installer. Silicone sealant is applied at the perimeter of the pipe, between the flashings, and along the top edge of the flashing. The penetration is installed after the wall panels are erected and positioned away from panel joints.
INSULATED PANEL SILICONE SEALANT AT TOP OF FLASHING (NOT BY KINGSPAN) POP RIVETS (QUANTITY REQUIRED SHALL BE DETERMINED BY INSTALLER) SILICONE SEALANT AT PERIMETER OF PIPE (NOT BY KINGSPAN) TWO PIECE FLASHING WITH 1/2" HEM. BED SEAL TO PANEL WITH BUTYL SEALANT (BLIND) COPE FLASHING (FIELD FABRICATED FROM FLATSTOCK) NOTE: PIPE PENETRATION (NOT BY KINGSPAN) NOTE: DO NOT ALIGN PENETRATIONS AT PANEL JOINT. SILICONE SEALANT BETWEEN FLASHINGS (NOT BY KINGSPAN) NOTE: FLASHING AT PENETRATIONS TO BE FIELD FABRICATED FROM FLATSTOCK SHEETS AS NECESSARY. QUANTITY OF FLATSTOCK REQUIRED SHALL BE DETERMINED BY INSTALLER (NOT BY KINGSPAN) THIS DETAIL ASSUMES AFTER PANEL IS INSTALLED PENETRATION OCCURS
