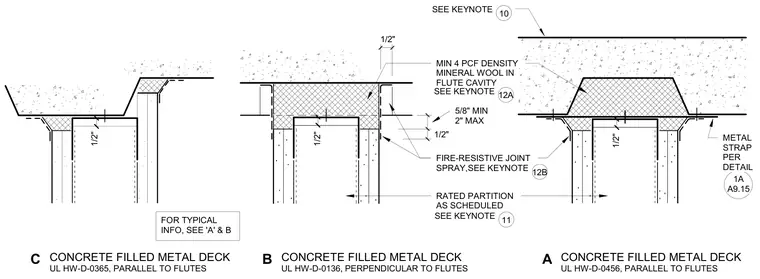

A rated partition head intersects a concrete-filled metal deck parallel and perpendicular to the flutes. The gap is packed with a minimum 4 PCF density mineral wool in the flute cavity and sealed with a fire-resistive joint spray. Metal straps tie the rated partition as scheduled to the assembly.
METAL STRAP PER DETAIL RATED PARTITION AS SCHEDULED 1/2" FIRE-RESISTIVE JOINT SPRAY, 1/2" 5/8" MIN 2" MAX 1/2" MIN 4 PCF DENSITY MINERAL WOOL IN FLUTE CAVITY 1A A9.15 1/2" FOR TYPICAL INFO, SEE 'A' & B 1/2" CONCRETE FILLED METAL DECK UL HW-D-0456, PARALLEL TO FLUTES A CONCRETE FILLED METAL DECK UL HW-D-0136, PERPENDICULAR TO FLUTES B CONCRETE FILLED METAL DECK UL HW-D-0365, PARALLEL TO FLUTES C SEE KEYNOTE 10 SEE KEYNOTE 12A SEE KEYNOTE 12B SEE KEYNOTE 11
